Features of the CA378-AOIS camera module
01 Compact and high performance Sony 1/2.3" CMOS image sensor IMX378
02 High resolution 4K camera support
03 High-speed operation output
04 High-speed autofocus (AF) function with image phase detection
05 Optical image stabilization
06 High dynamic range (HDR) drive function
Sample Images
12M AE(Spot) AWB AF 850lux 430mm Macbeth
12M AE(Spot) AWB AF 850lux 200mm Macbeth
SlowMotionMovie
High Speed AF Movie
Optical image stabilization
Application
Fixed-point camera for product management
Smart Glasses
Fieldscope
Underwater camera
Camera for ID verification
Digital camera
採用企業例
Specification
|
Image |
Image size |
Type 1/2.3 |
|
|---|---|---|---|
|
Module effective pixels |
4056 (H) × 3040 (V) |
12.33 M pixels |
|
|
Lens |
Lens construction |
6 Lenses |
|
|
Focal length |
4.52 mm (35mm equivalent : 25mm) |
||
|
F value |
2.0 |
||
|
Angle of view (INF position) |
Horizontal/Vertical/Diagonal |
68.8 ° / 54.3° / 81.1° |
|
|
Focus range |
100mm to infinity with auto focus |
||
|
Focus Control |
Feedback control VCM linear motor |
||
|
OIS |
PWM control OIS |
||
|
Output |
MIPI CSI-2 (4 lane) RAW Data 12/10/8 COMP8 output |
Frame rate |
|
|
Capture mode (all images) |
Max. 60 frame/sec. |
||
|
4K2K movie (16:9) |
Max. 60 frame/sec. |
||
|
Full HD movie (16:9) |
Max. 240 frame/sec. |
||
|
I/O |
Image signal |
MIPI CSI2 2/4 lane |
|
|
Control signal |
I2C interface for image sensor and AF/OIS driver |
||
|
Number of terminals |
34 pins |
||
|
Others |
Power supply |
||
|
Image sensor (analog) |
2.8 ± 0.1 V |
||
|
Image sensor (digital) |
1.05 ± 0.1 V |
||
|
I/O |
1.8 ± 0.1 V |
||
|
Actuator |
2.8 ± 0.1 V |
||
|
Package dimensions(All) |
13.1mm（W）×21.0mm（D）×5.9mm（H） |
||
|
Package dimensions(Module) |
13.1mm（W）×12.5mm（D）×5.9mm（H） |
||

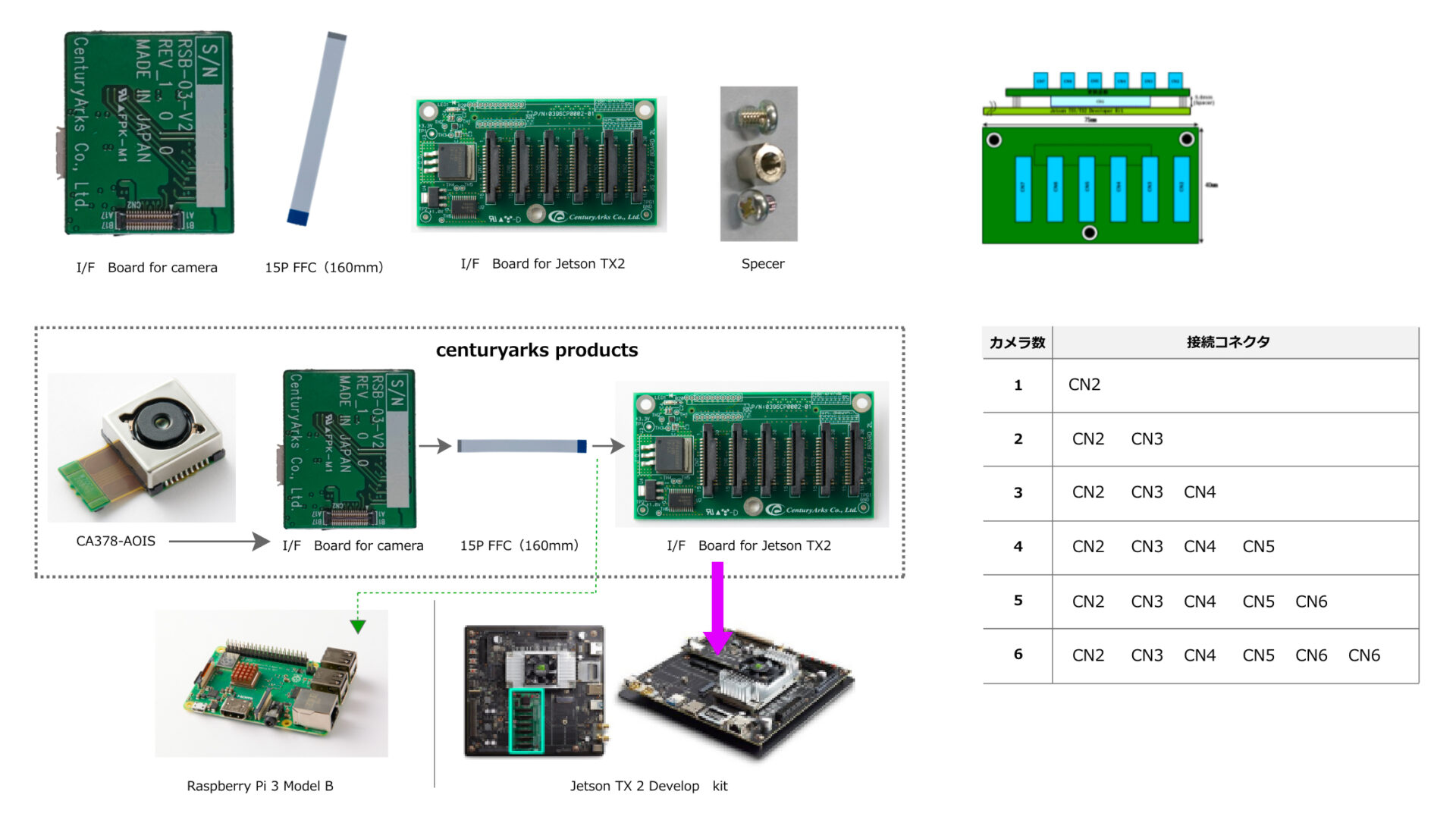

Evaluation Kit
Raspberry Pi 3 ModelB
VGA(640×480) 20~30fps
Raspberry Pi 4 ModelB
4K3K(4056×3040) 10fps
- (2028×1520) 40fps 2×2binning
- (2028×1080) 50fps
Jetson nano
4K3K(4032×3040) 20fps
4K2K(3840×2160) 30fps
FHD(1920×1080) 120fps
Jetson TX1/TX2
JETSON TX2 Develop kit
MIP(2lane)4k3k(4032×3040)30fps（max）
4k3k(3840×2160)30fps）(max)
FHD(1920×1080)120fps(max)
Download (Evaluation Kit Documents)
