Features of SilkyEvCaｍ HD
- HD (1280px X 720px) high resolution
- Equipped with Sony IMX636 (*) event-based vision sensor, realized in collaboration between Sony and Prophesee
- Pixel size 4.86µm x 4.86µm
- Compact image area to allow mounting of S-mount (M12) lenses
- HD (1280px X 720px) high resolution
- Equipped with Sony IMX636 (*) event-based vision sensor
- Pixel size 4.86µm x 4.86µm
- Compact image area to allow mounting of S-mount (M12) lenses
- USB3.0 Type-C interface
- Small data volume, High-speed sensing (minimum temporal resolution 1µsec)
- Wide dynamic range
- Frame rate can be changed after recording
- No motion blur
- Compact and lightweight, can be installed anywhere
(*) SSS IMX636 product website (external site)
Please refer to the following FAQ for Hot pixels guideline for event-based vision sensor.
FAQ : The amount of output data seems to be large compared to the event status of the image.
Other videos can be found on the "SilkyEvCam sample videos" page.

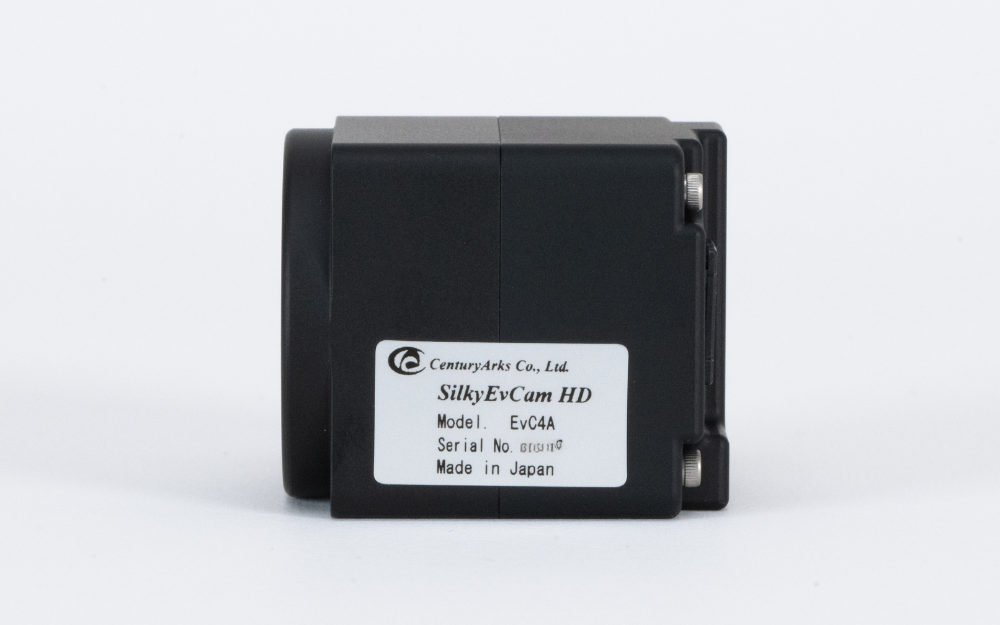

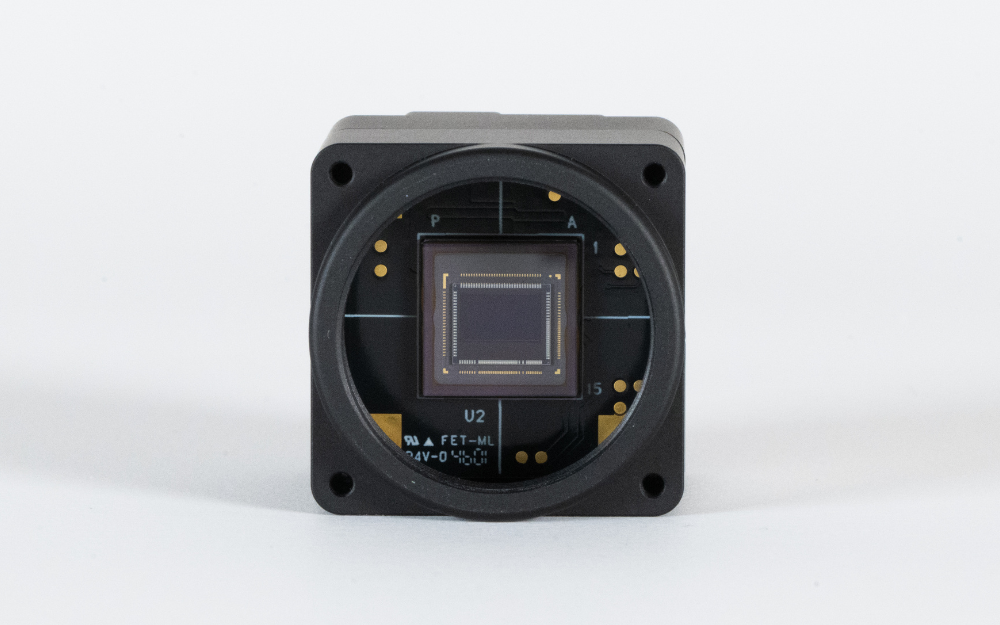

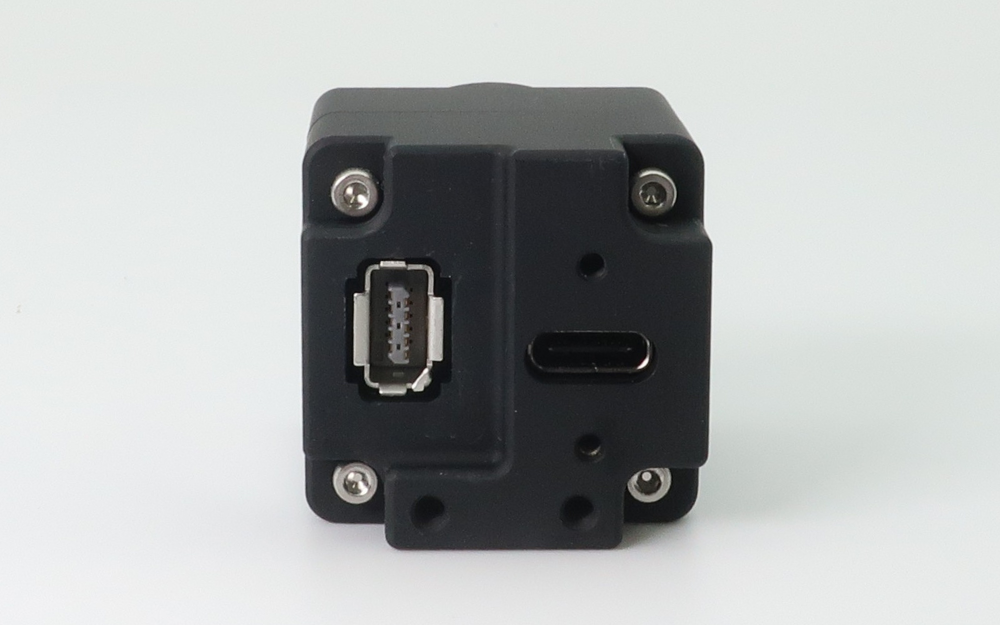

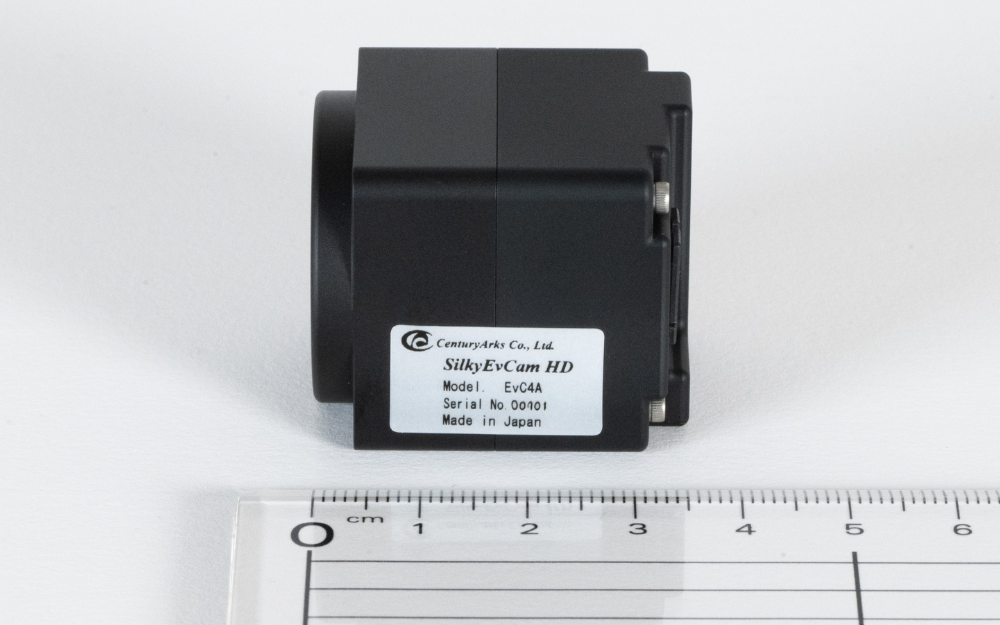

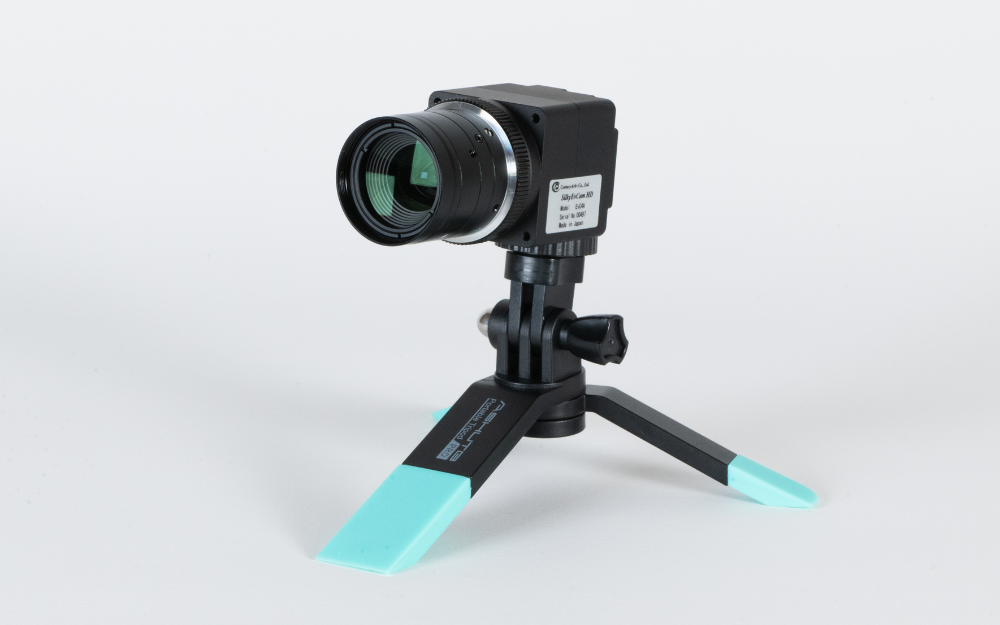

Product Images
You can order Standard set.

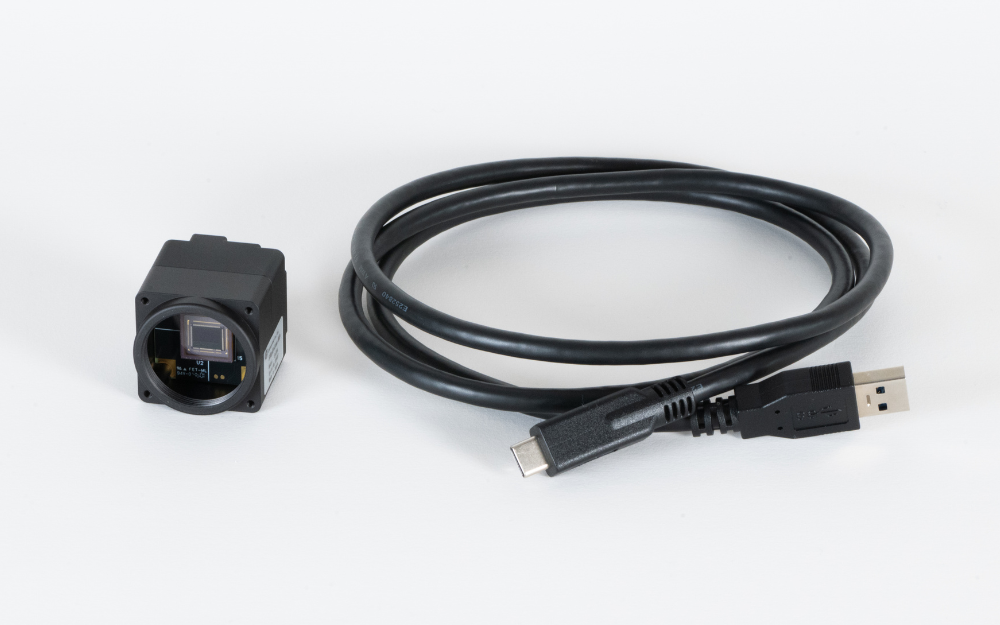

- Standard set (camera and USB cable)
You can order Standard set or Turnkey set
- Standard set (camera and USB cable)

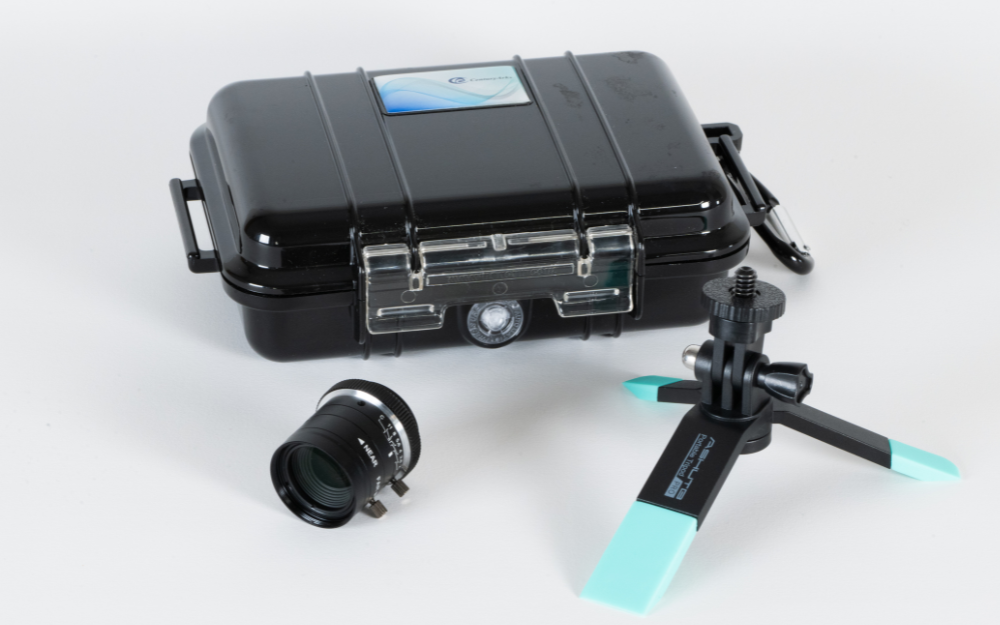

- Turnkey Set (camera, USB cable, lens, mini tripod and mobile case)

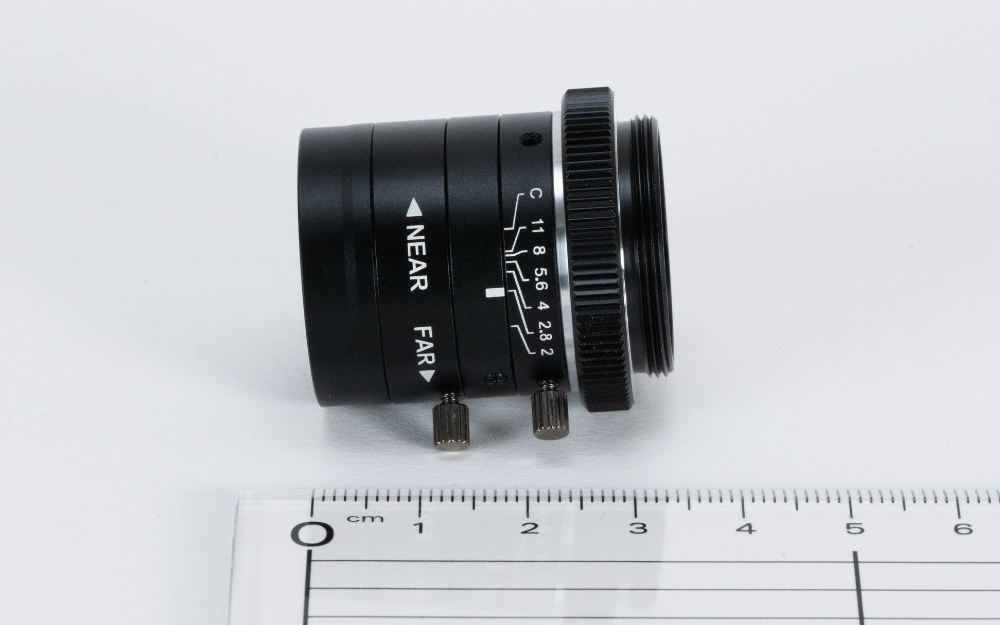

(lens:SFA0820-5M (SOYO)、CS to C lens attachment)
+
Specification
| SilkyEvCam(VGA) | SilkyEvCam HD | ||||
| Event-Based Vision sensor | Model | PPS3MVCD (Prophesee) | IMX636(Sony) | ||
|---|---|---|---|---|---|
| Image size | Type 3/4 “ (Diagonal 12mm) | Type 1/2.5 “ (Diagonal 7.14mm) | |||
| Module effective pixels | VGA ( 640 (H) x 480 (V) ) | HD ( 1280 (H) x 720 (V) ) | |||
| Pixel size | 15μm x 15μm | 4.86μm x 4.86μm | |||
| Typical Latency | 200μs | 100μs or under @ 1k lux | |||
| Output | Interface (event data & control) | USB 3.0 (USB Type-C(TM) connector) | USB 3.0 (USB Type-C(TM) connector) | ||
| Interface (Sync/Trigger) | IX Series Connector ( IX80G-B-10P : HIROSE ) (Plug: IX30G-B-10S-CV(7.0) | IX31G-B-10S-CV(7.0) ) |
IX Series Connector ( IX80G-B-10P : HIROSE ) (Plug: IX30G-B-10S-CV(7.0) | IX31G-B-10S-CV(7.0) ) |
|||
| Camera | Power supply | USB Power (VBUS) | 5.0 V | USB Power (VBUS) | 5.0 V |
| Lens Mount type | C/CS Mount | C/CS Mount | |||
| Wide Dynamic Range | >120dB | >120dB* | |||
| Operating temperature | T operation | 0 ～ + 50 ℃ | T operation | 0 ～ + 50 ℃ | |
| Storage temperature | T storage | - 30 ～ + 80 ℃ | T storage | - 30 ～ + 80 ℃ | |
| Current consumption | 500mA(max) , 200～300ｍA(Ave.) | 300mA(max) , 100ｍA(Ave.) | |||
| Dimensions / Weight (w/o Lens) | 30mm (W) x 30mm (H) x 36mm (D) / 40g | 30mm (W) x 30mm (H) x 36mm (D) / 42g | |||
| Accessories | USB3.0 Type-C(TM) Cable 1.2m (w/ rock screw) | USB3.0 Type-C(TM) Cable 1.2m (w/ rock screw) | |||
| Raw Formats | EVT3 | EVT3 | |||
| Standard Lens | Model | M0814-MP2 (computar) | SFA0820-5M (SOYO) | ||
| Focal length | 8mm | 8mm | |||
| F value | F1.4 - F16C | F2.0 - C | |||
| Angle of view | 70deg | 47.7deg(D) | |||
| Focus range | 100mm to infinity | 100mm to infinity | |||
| Size / Weight | Φ33.5mm x 28.2mm / 62.6g | Φ27mm x 33mm / 32.5g | |||
| Others | Turn Key Pack | Standard Lens / Mini tripod / Hardcase | Standard Lens / Mini tripod / Hardcase | ||
| SDK support by PROPHESEE | METAVISION® Intelligence Suite | METAVISION® Intelligence Suite | |||
(*) DR >120 dB can be reached based on low light cutoff measurement being: 0.08 lux (imaging characteristics not guaranteed).
Getting Started
- Download and install METAVISION® INTELLIGENCE from the PROPHESEE website.
- Download the Plug-in setup file from the CenturyArks website and set up the Plug-in file.
- Connect the SilkyEvCam to your PC via USB cable.
- Open a terminal on your PC and run metavision_studio. Verify that the image is ready.
- PROPHESEE's METAVISION® INTELLIGENCE site introduces various examples of processing execution. Please try it out.
Registration
Firmware and plug-ins for SilkyEvCam may be updated without notice to improve product quality.
If you register as a customer with your product serial number, you can receive the latest firmware and plug-in information by e-mail in a timely manner.
